Typical application fields
- Broadband reception
- Small signal amplifier or preamplifier
- For laboratory testing
- Antenna and space broadband reception
Description
| brand |
Tianhua Zhongwei |
| model |

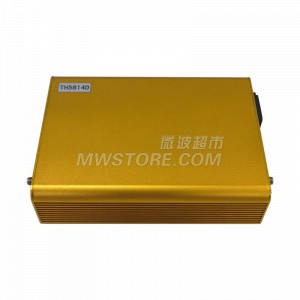

TH5814D |
Electrical Specifications
| Gain |
52dB typ |
| Noise Figure |
2.0dB @2.0GHz |
| Gain Flatness |
±3.0dB |
| P1dB |
14dBm |
| Maximum inlet power |
-15dBm |
| ISWR |
2.0:1 |
| OSWR |
2.5:1 |
| Power Supply |
AC 220V |
| Frequency Range |
0.1～6.0GHz |
Environmental Specifications
| working temperature |
-20℃～+70℃ |
| Storage temperature |
-55℃～+100℃ |
MECHANICAL CHARACTERISTICS
| weight |
-- |
| Module structure size |
163mm×120mm×45mm |
