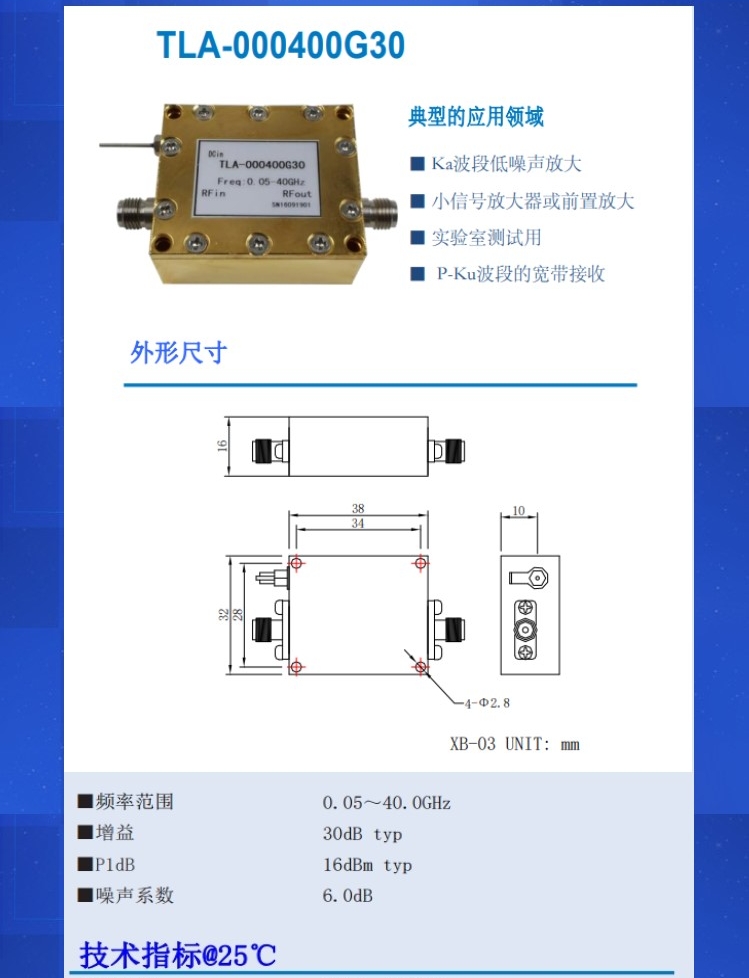

Typical application fields
- Ka-band low noise amplification
- Small signal amplifier or preamplifier
- For laboratory testing
- Broadband reception in P-Ka band
Description
| brand |
Tianhua Zhongwei |
| model |

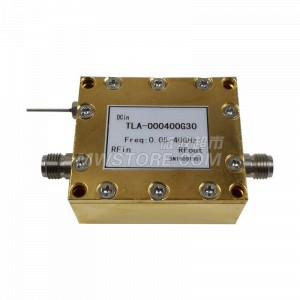

TLA-000400G30 |
Electrical Specifications
| Gain |
30dB typ |
| Noise Figure |
6.0dB |
| Gain Flatness |
±3dB typ |
| P1dB |
16dBm typ |
| Limit Voltage |
15V |
| Maximum inlet power |
-5dBm |
| ISWR |
2.5:1 |
| OSWR |
2.5:1 |
| working voltage |
12.0V |
| working current |
400mA |
| Frequency Range |
0.05～40.0GHz |
Environmental Specifications
| working temperature |
-20℃～70℃ |
| Storage temperature |
-55℃～100℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
38mm×32mm×16mm |
| weight |
46g |
