Typical application field:
- Communication radar
- Small signal amplifier or preamplifier
- For laboratory testing

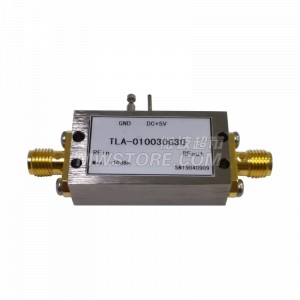

Description
| brand |
Tianhua Zhongwei |
| model |
TLA-010030G30 |
Electrical Specifications
| Gain |
30dB typ |
| Noise Figure |
1.5dB@2GHz |
| Gain Flatness |
±1.5dB typ |
| P1dB |
12dBm typ |
| Limit Voltage |
7.2V |
| Maximum inlet power |
-10dBm |
| ISWR |
1.5:1 |
| OSWR |
1.5:1 |
| working voltage |
5.0V |
| working current |
150mA |
| Frequency Range |
1.0GHz～3.0GHz |
Environmental Specifications
| working temperature |
-20℃～70℃ |
| Storage temperature |
-55℃～100℃ |

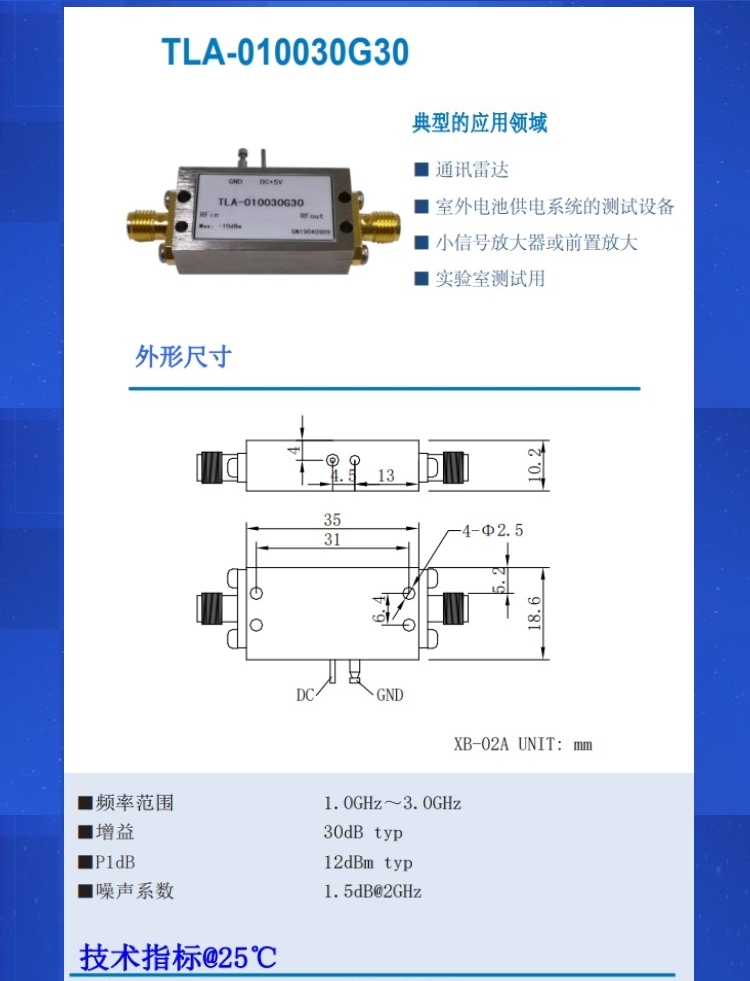

MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
16g |
