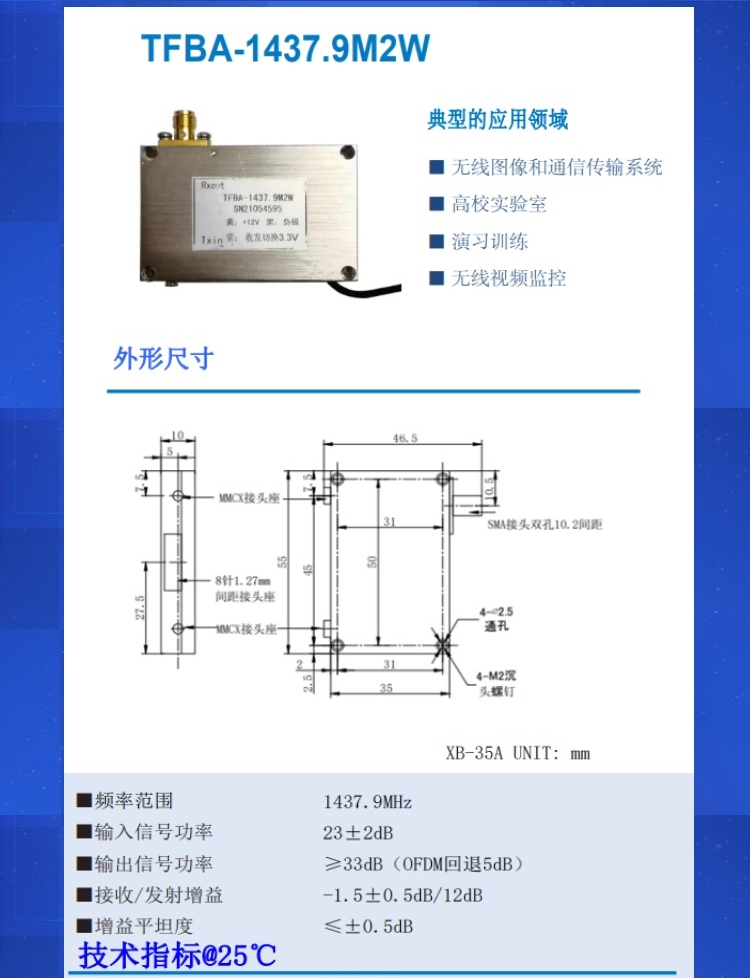

Typical application fields
- Wireless image and communication transmission system
- University laboratory
- Exercise training
- Wireless video surveillance
Description
| brand |
Tianhua Zhongwei |
| model |

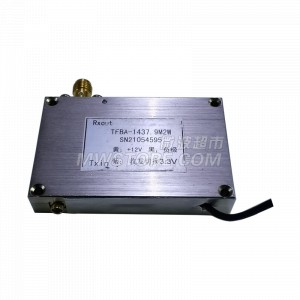

TFBA-1437.9M2W |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
-- |
| Connector 2 Gender |
-- |
| Power |
-- |
Electrical Specifications
| Gain Flatness |
≤±0.5dB |
| switching time |
≤1.55us |
| Beidou, GPS band suppression |
≥30dBc |
| working voltage |
DC 12±2V |
| Input-output standing wave |
≤1.5dB |
| Input signal power |
0dBm |
| Output signal power |
23±2dB |
| Output signal power |
≥33dB(OFDM backoff 5dB) |
| Receive/transmit gain |
-1.5±0.5dB/12dB |
| Signal bandwidth |
20MHz |
| Transmission system |
OFDM |
| Duplex mode |
TDD |
| Power amplifier magnification |
≥10dB |
| Filter performance |
SAW with radio frequency sound meter filter |
| External clutter suppression |
≥40dBc |
| Harmonic suppression |
≥60dB |
| Equipment power consumption |
≤10W |
| Frequency Range |
1437.9MHz |
Environmental Specifications
| Storage temperature |
-40℃～65℃ |
| Temperature Range |
-40℃～60℃ |
MECHANICAL CHARACTERISTICS
| Weight |
≤40g |
| Structural Dimension |
55mm×35mm×10mm |
| Power connector |
1.25mm8P connector |
