Typical application fields
- test instrumentation
- Microwave radio
- laboratory test
- Telecommunication infrastructure
Description
| brand |
Tianhua Zhongwei |
| model |

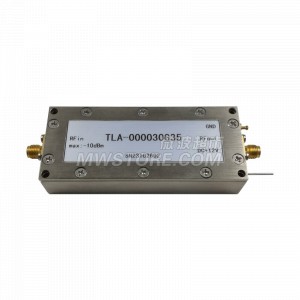

TLA-000030G35 |
Electrical Specifications
| Gain |
35dB typ |
| Noise Figure |
3.0dB@1.0GHz typ |
| Gain Flatness |
±2.0dB typ ±3.5dB max |
| P1dB |
20dBm typ |
| OIP3 |
35dBm typ |
| Limit Voltage |
15V |
| Maximum inlet power |
-10dBm |
| ISWR |
2.0:1 typ 2.5:1 max |
| OSWR |
2.0:1 typ 2.5:1 max |
| working voltage |
12.0V typ |
| working current |
230mA |
| Reflection isolation |
50dB |
| Frequency Range |
0.01GHz～3.0GHz |
Environmental Specifications
| working temperature |
-20℃～70℃ |
| Storage temperature |
-55℃～100℃ |

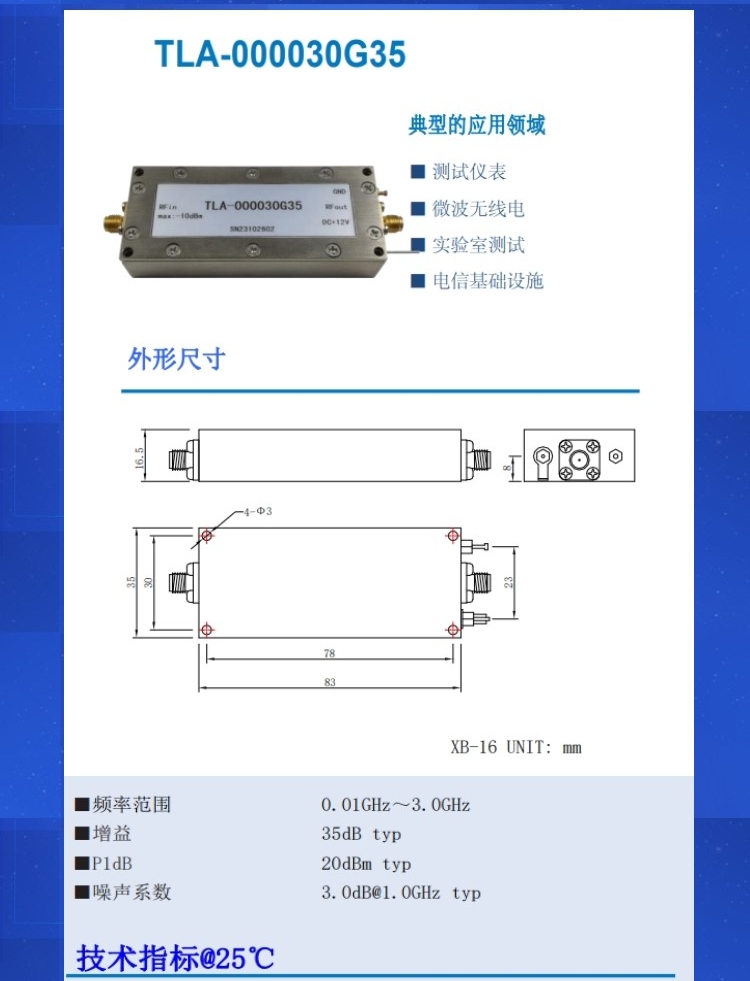

MECHANICAL CHARACTERISTICS
| Structural Dimension |
83mm×35mm×16.5mm |
| weight |
-- |
