Typical application fields
- Wi-FI network system
- Cellular system
- Unmanned system

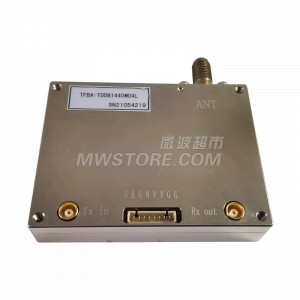

Description
| brand |
Tianhua Zhongwei |
| model |
TFBA-TDDB1440M04L |
| Connector 1 Series |
-- |
| Connector 1 Gender |
-- |
| Connector 2 Series |
-- |
| Connector 2 Gender |
-- |
| Power |
-- |
Electrical Specifications
| Noise Figure |
≤2.5dB |
| Gain Flatness |
≤±1.0dB |
| Transmit gain |
≥46±1dB |
| switching time |
≤10us |
| Receiving limited output power |
0dBm |
| Transmitting output power |
≥36dBm |
| Receiving gain |
≥40dB |
| ACPR |
≤-30dBc（@±3.84MHz） |
| Beidou, GPS band suppression |
≥50dBc |
| Standing wave ratio entrance |
≤±1.0dB |
| Stray suppression |
≤60dBc |
| Power supply/enable/current |
DC +12V/DC 3.3V/1.7A |
| Power connector |
1.25mm8P straight needle holder |
| Maximum input power |
-8dBm |
| Frequency Range |
1440±5MHz |
Environmental Specifications
| Storage temperature |
-40℃～80℃ |
| Relative Humidity |
≤95% (no condensation) |
| Temperature Range |
-40℃～60℃ |

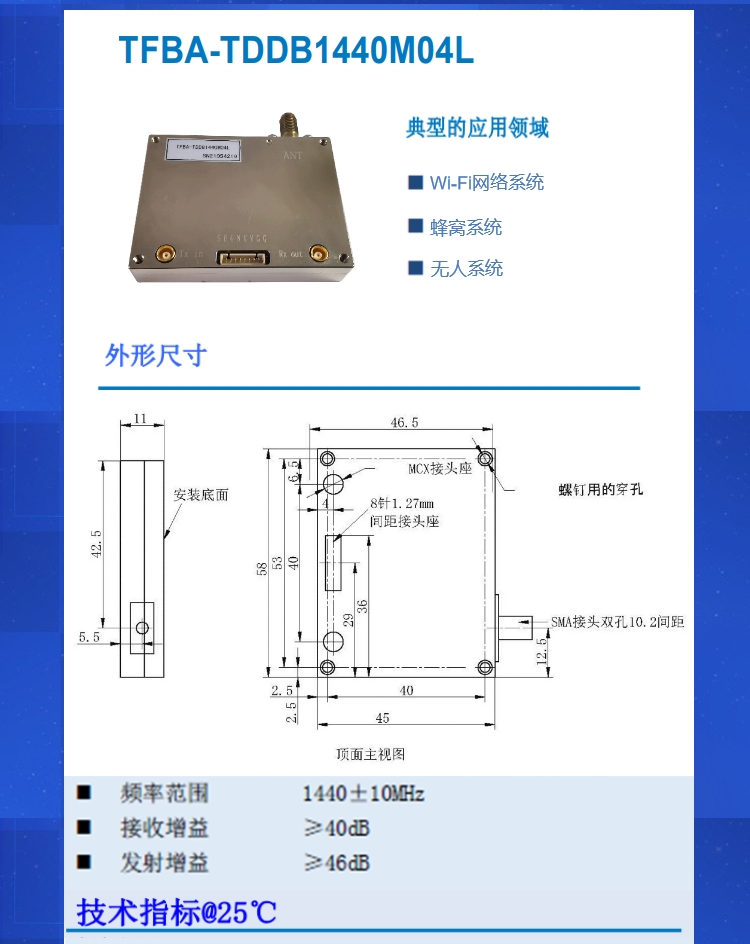

MECHANICAL CHARACTERISTICS
| Weight |
-- |
| physical dimension |
58mm×45mm×11mm |
