| Qty | 1-4 | 5 -10 | 11 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,350.00 | ￥1,323.00 | ￥1,282.50 | ￥1,242.00 | ￥1,215.00 |

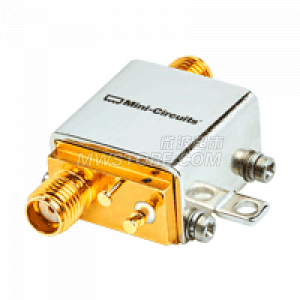

0.2 to 12000 MHz ,SMA Bias Tee, Rated To 400mA And 25 Volts DC
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Frequency Range | 0.2-12000MHz |
|---|---|
| Maximum rated voltage | 25V |
| maximum rated current | 400mA |
| VSWR | 1.5 |
| Insertion Loss | 2.5dB |
| Temperature Range | -55 ~ +100℃ |
|---|
