| Qty | 1-5 | 6 -10 | 11 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,800.00 | ￥1,764.00 | ￥1,710.00 | ￥1,656.00 | ￥1,620.00 |

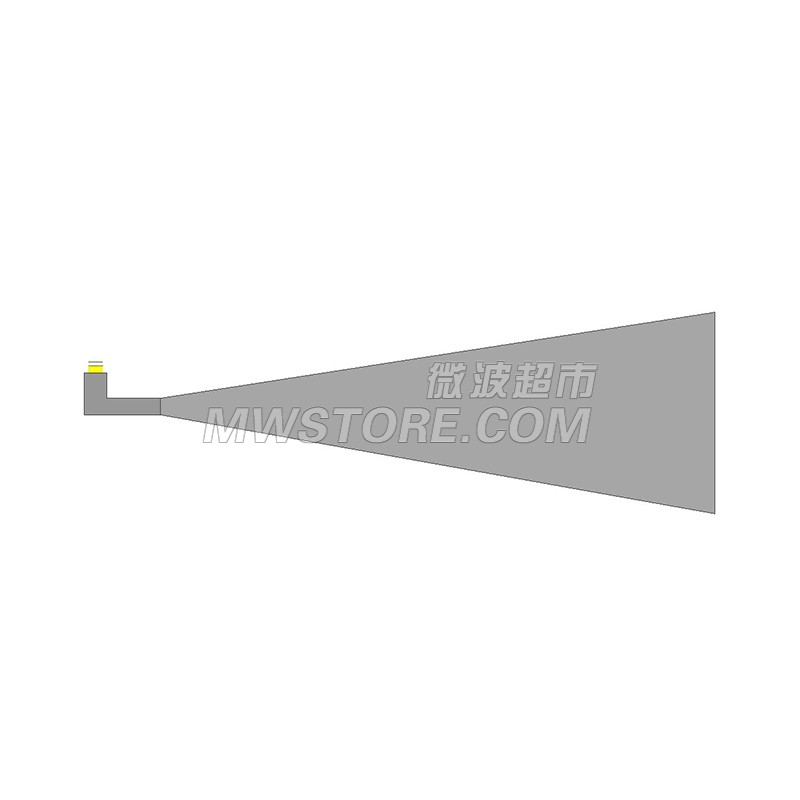

Horn Ka band broadband antenna.Linear polarization,33.5GHz With a Nominal Gain(Max)25dBi ,2.92mm Input Connector
Dimensions are in mm
| V.S.W.R | ≤1.5 |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | 33.5G |
| Connector 1 Series | 2.92mm |
| Gain | 25dB |
|---|---|
| Frequency Range | 26~41GHz |
| Polarization | Linear |
| Temperature Range | -20℃~+75℃ |
|---|
| Outline Dim. | 173.5*71.5*55.4mm |
|---|
