| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥--- | ￥--- | ￥--- | ￥--- | ￥--- |

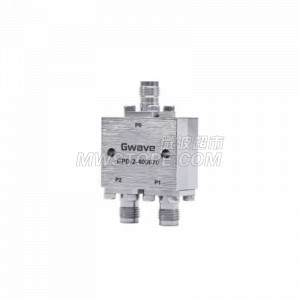

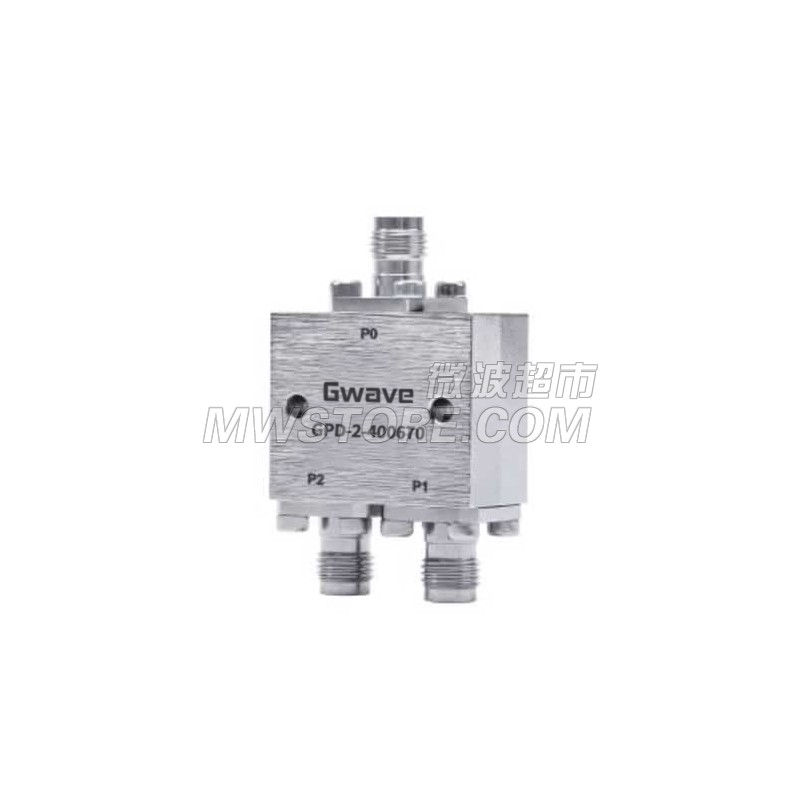

2 Way Power Divider 1.85mm Connector，40-67GHz,12W
| Conn.Type | 1.85 mm(F) |
|---|---|
| Impedance, Ohms | 50 Ω |
| CW Power Max. | 12W |
| Peak Power Max. | 1kW |
| Frequency Range | 40~67G |
|---|---|
| Input VSWR Max. | 1.8 |
| Output VSWR Max. | 1.8 |
| Isolation Min. | 18 dB |
| Amp.Bal. Max. | ±0.6dB |
| Phase Bal. Max. | ±8° |
| Insertion Loss | 2.1dB |
| Temperature Range | -55 ~ +85℃ |
|---|
| Outline Dim. | 15.2x25.4x10mm |
|---|
