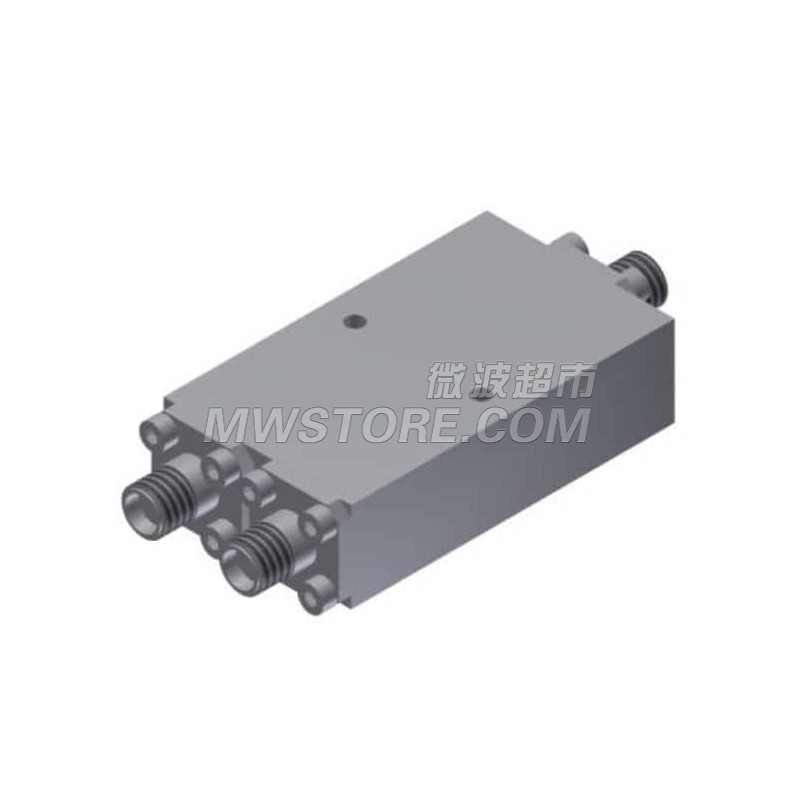

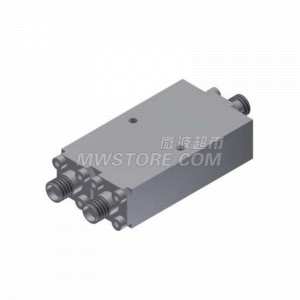

2 Way Power Divider 1.85mm Connector，2-67GHz,12W
| Conn.Type | 1.85 mm(F) |
|---|---|
| Impedance, Ohms | 50 Ω |
| CW Power Max. | 12W |
| Peak Power Max. | 1kW |
| Frequency Range | 2~67G |
|---|---|
| Input VSWR Max. | 1.8 |
| Output VSWR Max. | 1.8 |
| Isolation Min. | 18 dB |
| Amp.Bal. Max. | ±0.6dB |
| Phase Bal. Max. | ±8° |
| Insertion Loss | 3.3dB |
| Temperature Range | -55 ~ +85℃ |
|---|
| Outline Dim. | 45.5x26.4x12.7mm |
|---|
