All Categories >Amplifiers/Mixers/Switches >Amplifiers >Low Noise Amplifiers >low noise amplifier Frequency: 5MHz ~ 200MHz Gain: 25dB typ P1dB: 16dBm typ Noise figure: 3.0dB@10MHz typ

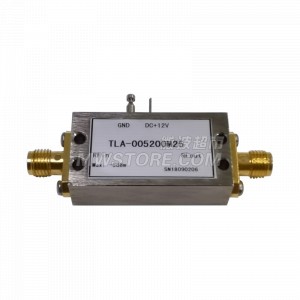

low noise amplifier Frequency: 5MHz ~ 200MHz Gain: 25dB typ P1dB: 16dBm typ Noise figure: 3.0dB@10MHz typ

Model:TLA-005200M25 193253ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-9 10 -19 20 -49 50+
Price ¥680.00 ¥646.00 ¥612.00 ¥598.40
Price: ¥680.00 /pcs
Qty
- +
Stock Status: In Stock
Add to Cart Inquiry Now

Typical application fields

  • Wireless signal reception
  • Test equipment for outdoor radio wave power supply system
  • Small signal amplifier or preamplifier
  • For laboratory testing

Description
working voltage Tianhua Zhongwei
Working current TLA-005200M15
Electrical Specifications
Gain 25.0dB typ
Noise Figure 3.0dB@10MHz typ
Gain Flatness ±1.0dB typ
P1dB 16.0dBm
OIP3 26.0dBm
Voltage 12.0V
Limit Voltage 15.0V
Maximum Input Power -5dBm
ISWR 1.5:1
OSWR 1.5:1
Current 200mA
Frequency Range 5~200MHz
Environmental Specifications
working temperature -20°C ~70°C
Storage temperature -55°C ~ 100°C
MECHANICAL CHARACTERISTICS
Structural Dimension 35mm×18.6mm×10.2mm
weight 18g
