All Categories >Amplifiers/Mixers/Switches >Amplifiers >Low Noise Amplifiers >low noise amplifier frequency range:5–200MHz gain: 10dB typ P1dB点: 14.0dBm typ Noise figure:3.0dB@10MHz typ

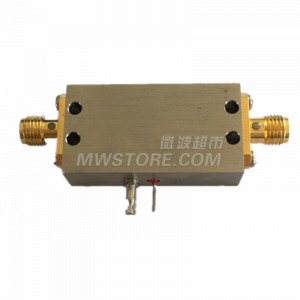

low noise amplifier frequency range:5–200MHz gain: 10dB typ P1dB点: 14.0dBm typ Noise figure:3.0dB@10MHz typ

Model:TLA-005200M10 193251ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -10 11 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Stock Status: In Stock
Add to Cart Inquiry Now


Description
frequency range 5–200MHz
gain 10dB typ
P1dB 14.0 dBm typ
Gain flatness ±1.0 dB typ
Noise figure 3.0 dB@10MHz typ
working voltage 12.0 V
Working current 200mA
Input standing wave 1.5 :1
output vswr 1.5 :1
Environmental Specifications
working temperature -20°C ~70°C
Storage temperature -55°C ~ 100°C
