Typical application fields
- emergency communication
- picture transmission
- Linear pulse
- Multicarrier amplification

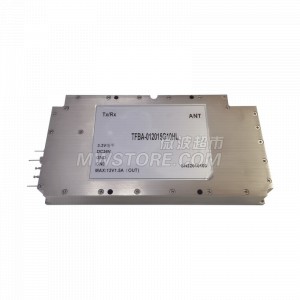

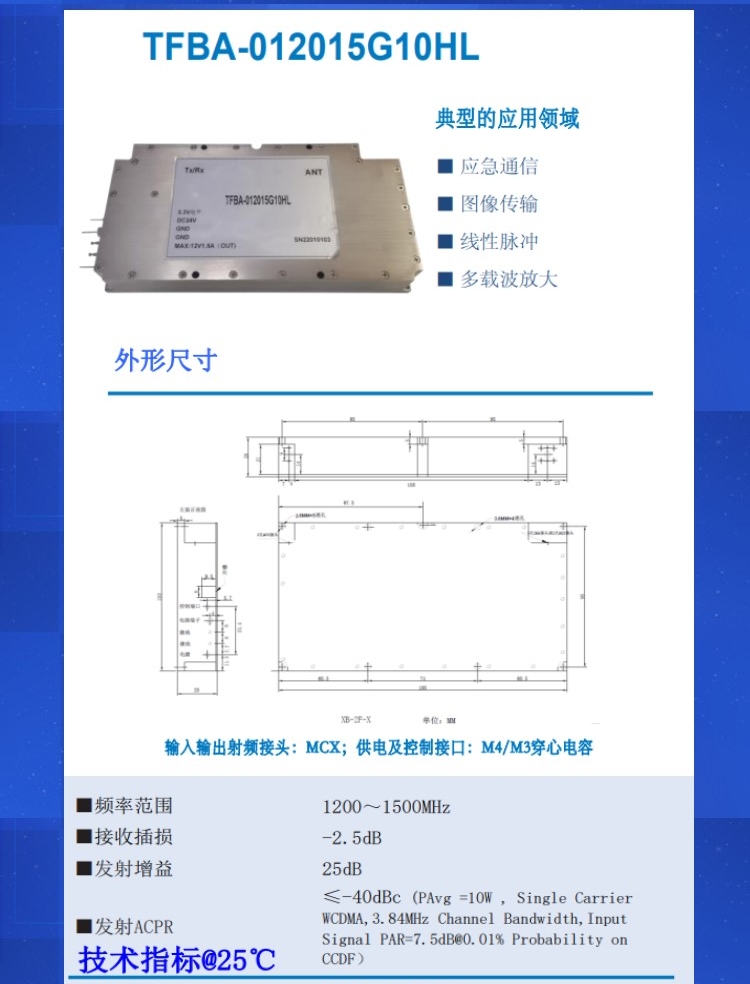

![](https://www.mwstore.com/static/image/catalog/2100068935/th_121_H5.jpg)
Description
brand |
Tianhua Zhongwei |
model |
TFBA-012015G10HL |
Electrical Specifications
Linear output power |
40dBm@ -40dBc |
Output power P1dB |
47.0dBm typ |
Transmit gain |
25±1.5dB |
Receiving insertion loss |
-2.5dB |
In-band flatness |
≤±2.0dB |
Parasitic inhibition |
≤-60dBc |
Stop-band enhanced suppression |
≤-30dBc@1559~1577MHz(In the built-in filter) |
I/O reflection coefficient |
≤1:1.5 |
switching time |
≤1.5u |
On-off level TLL |
high(3.0Vmin/5.0Vmax);low(0.0Vmin/0.5Vmax) |
Transmit ACPR |
≤-40dBc @10W(在WCDMA3.84MHz) |
IN voltage/quiescent current |
DC=+24V/1.8A |
OUT voltage/current |
DC=+12V/1.5A(Max) |
Frequency Range |
1200~1500MHz |
Environmental Specifications
Ambient temperature and humidity |
-40℃-85℃,≤95% (No condensation) |
MECHANICAL CHARACTERISTICS
physical dimension |
195mm×103mm×28mm |
