Typical application fields
- UHF band low noise amplification
- Test equipment for outdoor radio wave power supply system
- Small signal amplifier or preamplifier
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

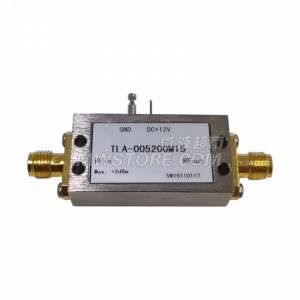

TLA-005200M15 |
Electrical Specifications
| Gain |
15.0dB typ |
| Noise Figure |
3.0dB@10MHz typ |
| Gain Flatness |
±1.0dB typ |
| P1dB |
16.0dBm |
| OIP3 |
26.0dBm |
| Voltage |
12.0V |
| Limit Voltage |
15.0V |
| Maximum Input Power |
+3dBm |
| ISWR |
1.5:1 |
| OSWR |
1.5:1 |
| Current |
200mA |
| Frequency Range |
5～200MHz |
Environmental Specifications
| working temperature |
-20°C ～70°C |
| Storage temperature |
-55°C ～ 100°C |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
18g |
