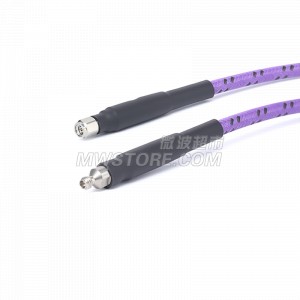

1.0mm Male to 1.0mm Female Cable Using 047 Low-loss & Phase-stable Series ,DC-110GHz，Stainless Steel Wire Covered By Tin Plated Copper Wire And Nomex Braid
Description
| Connector 1 Series |
1.0mm |
| Connector 1 Gender |
Male |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Stainless Steel |
| Connector 1 Mount Method |
None |
| Connector 2 Series |
1.0mm |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Stainless Steel |
| Connector 2 Mount Method |
None |
| Arm Serious |
Stainless Steel Wire Covered By Tin Plated Copper Wire And Nomex Braid(A3) |
Electrical Specifications
| Frequency Range |
DC-110G |
| VSWR |
≤1.45 |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+85℃ |
