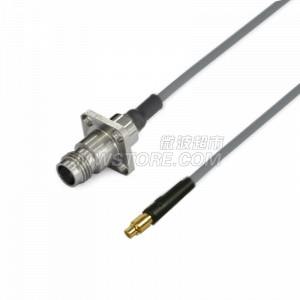

1.85mm Female 4 Hole Flange to MMPX Male Cable Using Using 3506 Series Coax,DC-67GHz
Description
| Connector 1 Series |
1.85mm |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Passivated Staindless Steel |
| Connector 1 Mount Method |
4 Hole Flange |
| Connector 2 Series |
MMPX |
| Connector 2 Gender |
Male |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Brass Gold Plated |
| Connector 2 Mount Method |
None |
| For Cable |
3506 |
| Arm Serious |
None |
Electrical Specifications
| Frequency Range |
DC-67G |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+165℃ |
