The MMD-1030H is a passive double balanced MMIC doubler covering 10 to
30 GHz on the output. It features excellent conversion loss, superior
isolations and harmonic suppressions across a broad bandwidth, in a highly
miniaturized form factor. Accurate, nonlinear simulation models are available
for Microwave Office® and ADS through the Marki Microwave PDK. The

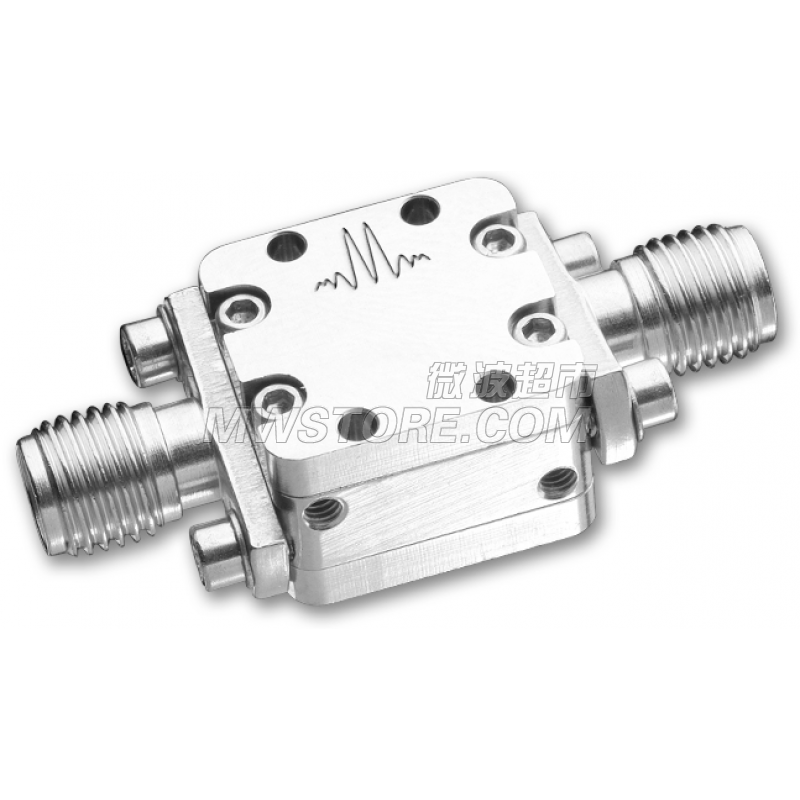

MMD-1030H is available as a wire bondable chip or a connectorized
package. The MMD-1030H is a superior alternative to Marki Microwave
carrier and packaged doublers
Electrical Specifications
| Conversion Loss |
12dB |
Environmental Specifications
| Temperature Range |
-55℃~+100℃ |
