| Qty | 1-4 | 5+ |
|---|---|---|
| Price | ￥22,047.34 | ￥20,944.97 |

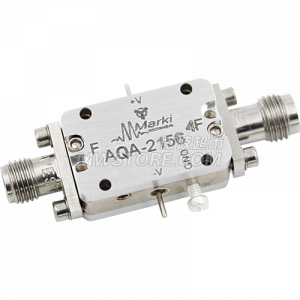

The AQA-2156 is an amplified frequency multiplier that quadruples the
5.25 – 14 GHz input frequency, producing an amplified 21 - 56 GHz quadrupled
output frequency. This multiplier is designed to provide +20 dBm 4F output power
with +0 dBm input power, and offers superior harmonic suppressions. It consists
of an input buffer APM-6848 amplifier, MMD-1030H doubler, 2nd APM-6848
buffer amplifier, MMD-1648L doubler, and an output AMM-6702 amplifier. It is
capable of providing sufficient LO drive for Marki S-, H-, and L- diode mixers.
