| Qty | 1-5 | 6 -10 | 11 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥4,800.00 | ￥4,704.00 | ￥4,560.00 | ￥4,416.00 | ￥4,320.00 |

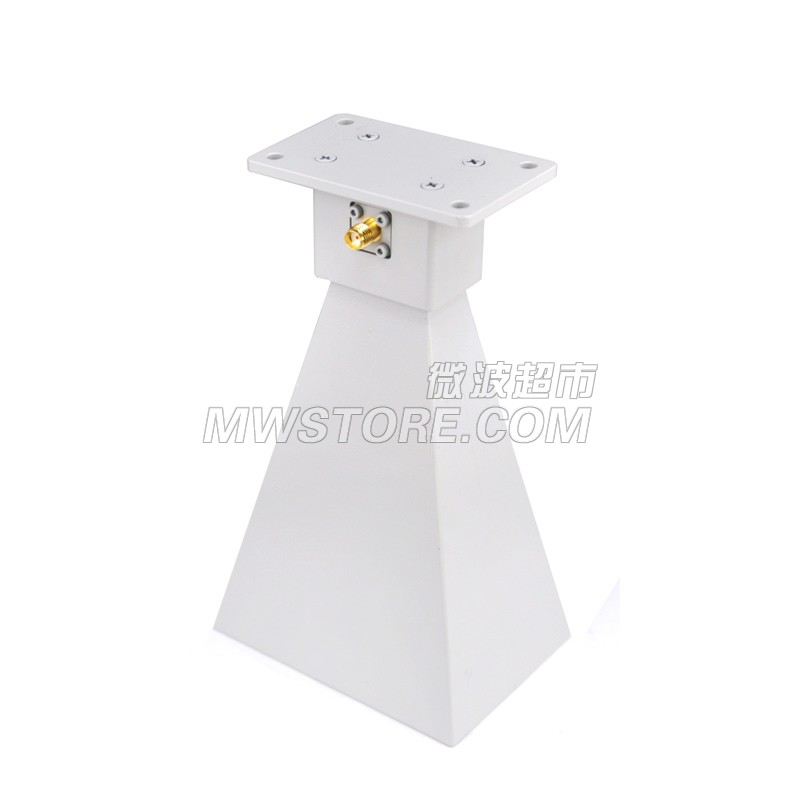

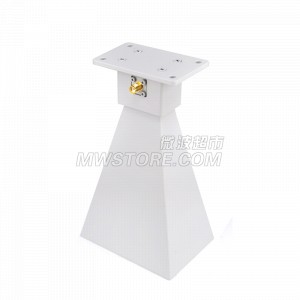

Horn Antenna Operating From 4 GHz to 12 GHz With a Nominal 10 dBi Gain ,SMA Female Input Connector
| Impedance, Ohms | 50 Ω |
|---|---|
| Connector 1 Series | SMA |
| Connector 1 Gender | Female |
| Connector 1 Polarity | Standard |
| Gain | 10 dBi(Avg.) |
|---|---|
| VSWR | ≤2:1 @ 4～12GHz |
| Temperature Range | -55~+105℃ |
|---|
| Outline Dim. | 180mm×90mm×64mm |
|---|
