| Qty | 1-24 | 25 -49 | 50 -99 | 100 -249 | 250+ |
|---|---|---|---|---|---|
| Price | ￥3,976.28 | ￥3,817.23 | ￥3,658.18 | ￥3,538.89 | ￥3,459.36 |

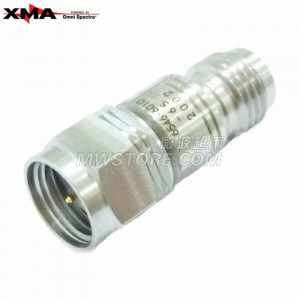

DC Block 6546-6010-65
Frequency Range (GHz) | 10MHz-65GHz |
Impedance | 50Ω |
VSWR Max | 1.60:1 |
Type | Inner |
Average Power (Watts) | 1W |
Voltage | 16V |
Insertion Loss Max | 1.25dB |
Connector 1 | 1.85mm Male (Plug) |
Connector 2 | 1.85mm Female (Jack) |
Operating Temperature(°C) | -55°C to 100°C |
| Connector 1 Series | 1.85mm |
|---|---|
| Connector 1 Gender | Male |
| Connector 1 Impedance | 50 Ω |
| Connector 2 Series | 1.85mm |
| Connector 2 Gender | Female |
| Connector 2 Impedance | 50 Ω |
| Power | 1W |
| Frequency Range | 10MHz-65GHz |
|---|---|
| VSWR | ≤1.60 |
| Temperature Range | -55°C to 100°C |
|---|
| Center Contact | BERYLLIUM PER ASTM B196&197 |
|---|---|
| Dielectric | TEFLON PER ASTM D1710 |
| Body | PASSIVATED SS PER MIL-PRF-39012 |
