| Qty | 1-9 | 10 -24 | 25 -49 | 50 -99 | 100+ |
|---|---|---|---|---|---|
| Price | ￥86.45 | ￥82.13 | ￥78.67 | ￥75.64 | ￥73.48 |
Frequency Range (GHz) | DC-18GHz |
Impedance | 50Ω |
VSWR Max | 1.30:1 |
Average Power (Watts) | 10W |

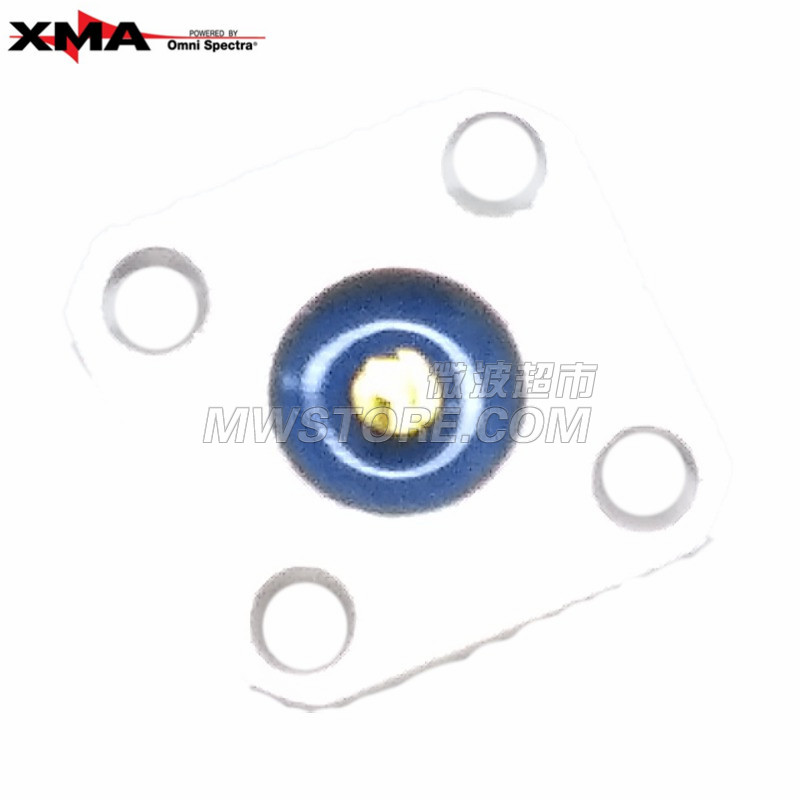

Connector | SMA-Flange |
Pin Height | 0.053 |
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | - |
| Connector 1 Impedance | 50 Ω |
| Connector 2 Gender | - |
| Connector 2 Impedance | 50 Ohms |
| Power | 10W |
| Frequency Range | DC-18GHz |
|---|---|
| VSWR | ≤1.30 |
| Temperature Range | -55°C to 85°C |
|---|
| Center Contact | BERYLLIUM PER ASTM B196&197 |
|---|---|
| Dielectric | TEFLON PER ASTM D1710 |
| Body | STAINLESS STEEL IAW ASTM-A484 & ASTM A582, ALLOY 303 |
