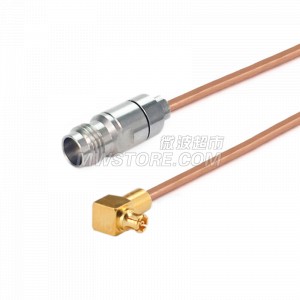

2.4mm Female to GPPO(Mini-SMP) Female Right Angle Cable Using GUT-0855(Copper) Coax, DC-40GHz
Description
| Connector 1 Series |
2.4mm |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Passivated Staindless Steel |
| Connector 1 Mount Method |
None |
| Connector 2 Series |
GPPO(Mini-SMP) |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Right Angle |
| Connector 2 Body Material |
CuBe Gold Plated |
| Connector 2 Mount Method |
None |
| For Cable |
GUT-085(Copper) |
| Arm Serious |
None |
Electrical Specifications
| Frequency Range |
DC-40G |
| VSWR |
10dB |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-45~+165℃ |
