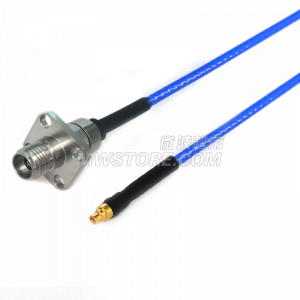

2.92mm Female 4 Hole Flange to GPPO(Mini-SMP) Female Cable Using 405 Series Coax,DC-40GHz
Description
| Connector 1 Series |
2.92mm |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Stainless Steel |
| Connector 1 Mount Method |
4 Hole Flange |
| Connector 2 Series |
GPPO(Mini-SMP) |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
CuBe Gold Plated |
| Connector 2 Mount Method |
None |
| For Cable |
GT405 |
| Arm Serious |
None |
Electrical Specifications
| Return Loss |
10dB |
| Frequency Range |
DC-40G |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+165℃ |
