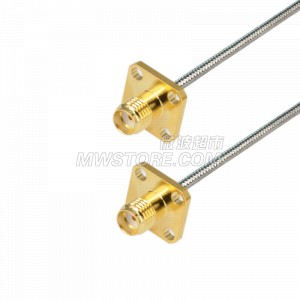

SMA Female 4 hole flange to SMA Female 4 hole flange Cable Using GUT-141-Form Coax,DC-18GHz
Description
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Brass Gold Plated |
| Connector 1 Mount Method |
4 Hole Flange |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Brass Gold Plated |
| Connector 2 Mount Method |
4 Hole Flange |
| For Cable |
GUT-141-Form |
| Arm Serious |
None |
Electrical Specifications
| Frequency Range |
DC-18G |
| VSWR |
≤1.35 |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+125℃ |
