| Qty | 1-199 | 200 -499 | 500 -999 | 1000 -4999 | 5000+ |
|---|---|---|---|---|---|
| Price | ￥250.00 | ￥245.00 | ￥237.50 | ￥230.00 | ￥225.00 |

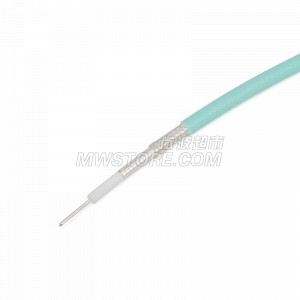

Low Loss Flexible raw Cable，DC-40GHz，Φ3.73mm，Loss 2.8dB/m, Substitute for Micro-coax UFA 147A
| Velocity of Propagation | 77% |
|---|---|
| Frequency Range | DC-40G |
| Insertion Loss | See datasheet |
| Temperature Range | -65°C to +125°C |
|---|
| Minimum Bend Radius | 6.35mm |
|---|---|
| Outer Diameter | 3.73mm |
| Outer Contact | Silver-plated copper braid |
|---|---|
| Centre Contact | Silver plated copper |
| Dielectric | Low Density PTFE |
