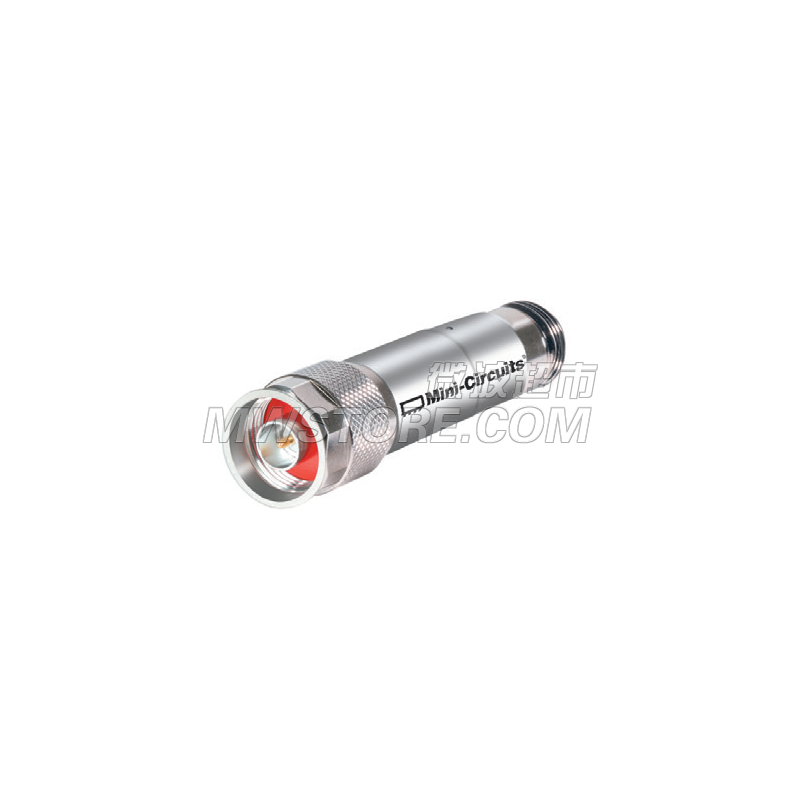

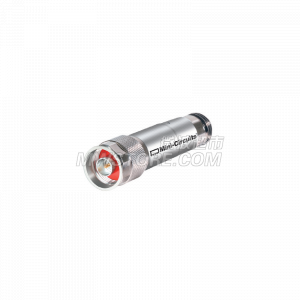

3 dB DC Passing Fixed Attenuator, N Male To N Female Rated To 1 Watts Up To 3.3 GHz
| Connector 1 Series | N |
|---|---|
| Connector 1 Gender | Male |
| Connector 1 Impedance | 50 Ohms |
| Connector 2 Series | N |
| Connector 2 Gender | Female |
| Connector 2 Impedance | 50 Ohms |
| Power | 1W |
| DC Maximum voltage | 50V |
|---|---|
| Attenuation Accuracy | ±0.7dB |
| Attenuation Value | 3dB |
| Frequency Range | 1.7-3.3GHz |
| VSWR | ≤1.6 |
| Temperature Range | -55~+100℃ |
|---|
