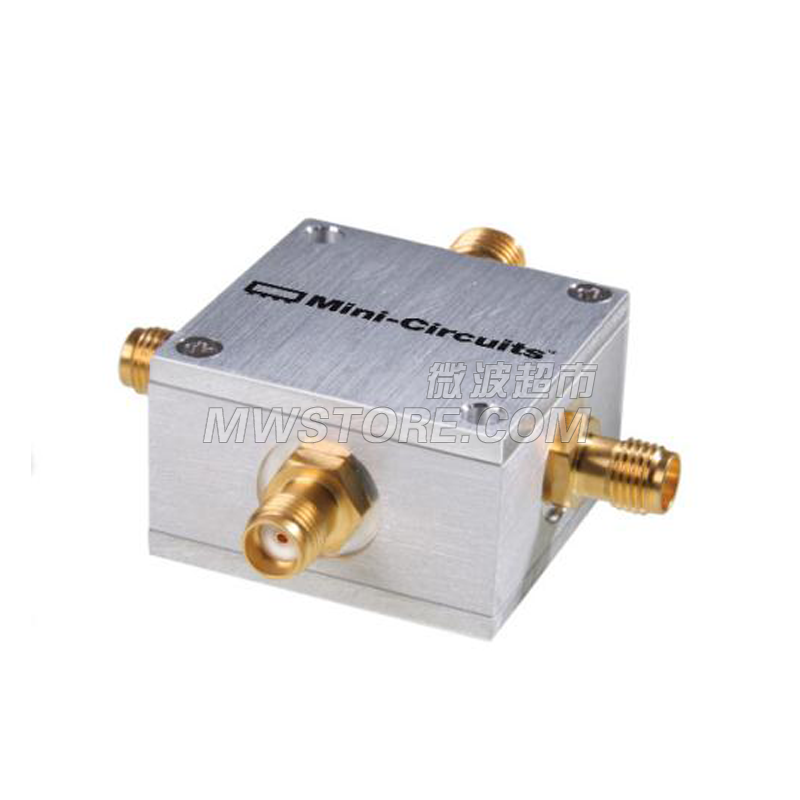

SMA 20.7dB Bi-Directional Coupler,800-900MHz
| Conn.Type | SMA |
|---|---|
| Impedance, Ohms | 50Ω |
| Input Power | 10W |
| Frequency Range | 800-900MHz |
|---|---|
| Nominal Coupling | 20.7±0.6dB |
| Directivity Min. | 20dB |
| Frequency Flatness Max. | 0.6dB |
| Mainline Loss | 0.4dB |
| VSWR | 1.1 |
| Temperature Range | -55°C~+100°C |
|---|
