| Qty | 1 | 2 -5 | 6 -10 | 11 -20 | 21+ |
|---|---|---|---|---|---|
| Price | ￥3,900.00 | ￥3,822.00 | ￥3,705.00 | ￥3,588.00 | ￥3,510.00 |

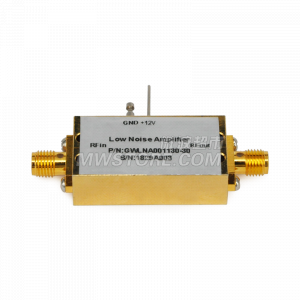

Low Noise Amplifier,0.1-13GHz,3.5dB NF ,30dB Gain
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Gain | 30dB |
|---|---|
| Noise Figure | 3.5dB |
| Gain Flatness | ±2dB |
| Operating DC Voltage | 12V |
| Output Return Loss | 15dB |
| Input Return Loss | 12dB |
| Output Power at 1dB Compression Point | 15dBm |
| Frequency Range | 0.1 ~ 13GHz |
| Temperature Range | -20~70℃ |
|---|
