| Qty | 1-10 | 11 -50 | 51 -200 | 201 -500 | 501+ |
|---|---|---|---|---|---|
| Price | ￥77.80 | ￥76.24 | ￥73.91 | ￥71.58 | ￥70.02 |

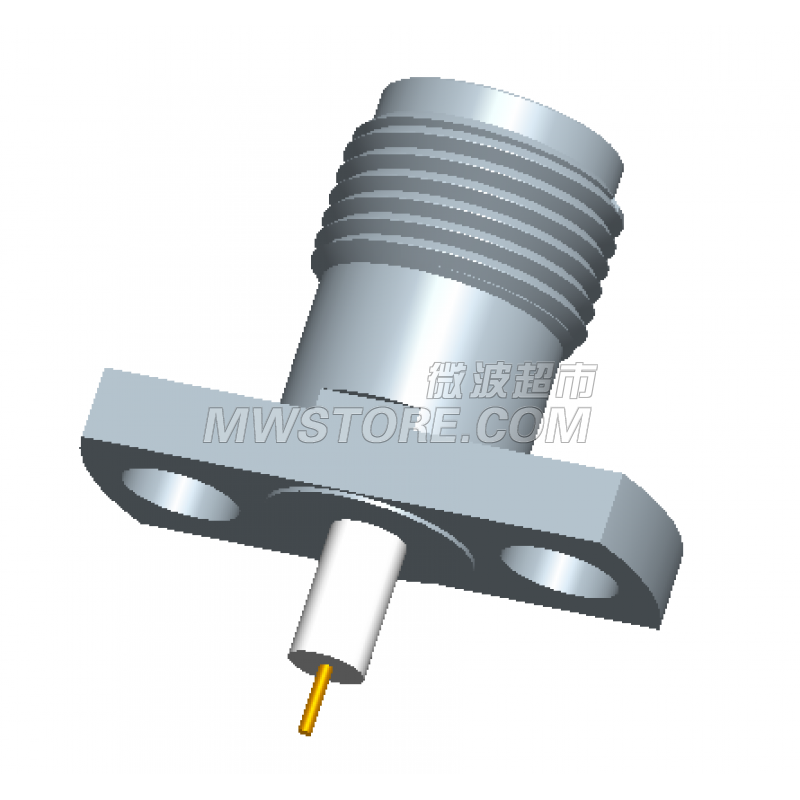

2.92mm Female End Launch Connector, 2 Hole Flange, Hole Spacing 8.6mm,DC-40GHz
| Connector 1 Series | 2.92mm |
|---|---|
| Connector 1 Gender | Female |
| Connector 1 Impedance | 50 Ohms |
| Connector 1 Polarity | Standard |
| Connector 1 Body Material | Stainless Steel |
| Interface Type | For PCB |
| Mount Method | 2 Hole Flange |
| Body Style | Straight |
| Frequency Range | DC-40G |
|---|---|
| VSWR | ≤1.15 |
| Temperature Range | -55~+165℃ |
|---|
