| Qty | 1-10 | 11 -50 | 51 -200 | 201 -500 | 501+ |
|---|---|---|---|---|---|
| Price | ￥155.00 | ￥151.90 | ￥147.25 | ￥142.60 | ￥139.50 |

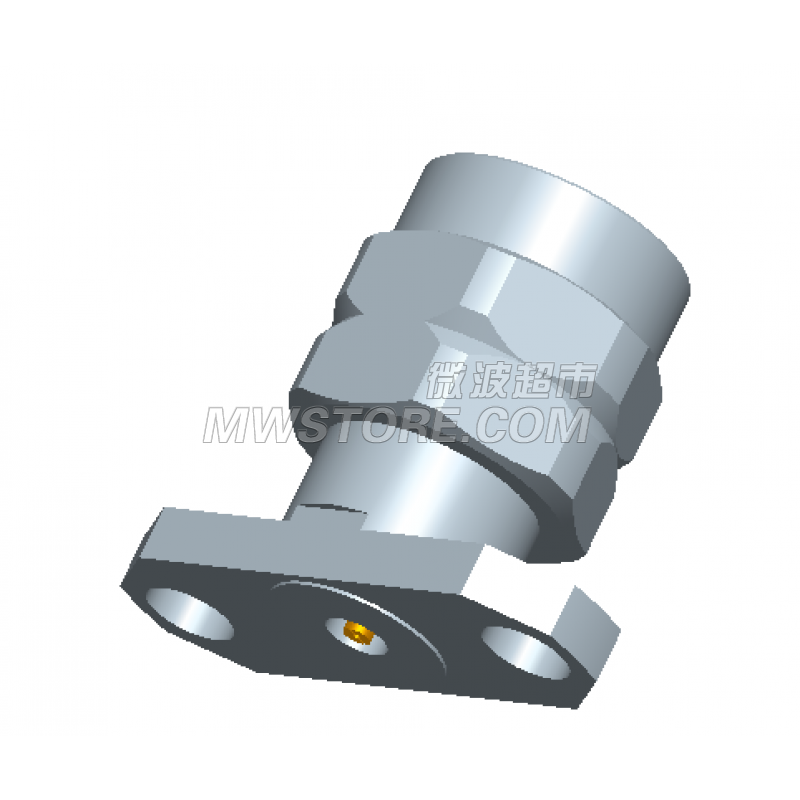

2.4mm Male Field Replaceable Connector, 2 Hole Flange, Hole Spacing 12.2mm，DC-50GHz， Accepts Ø0.23mm Pin，Product size information as follow：
Application：
| Connector 1 Series | 2.4mm |
|---|---|
| Connector 1 Gender | Male |
| Connector 1 Impedance | 50 Ohms |
| Connector 1 Polarity | Standard |
| Connector 1 Body Material | Stainless Steel |
| Interface Type | For PCB |
| Mount Method | 2Hole Flange |
| Body Style | Straight |
| Frequency Range | DC-50G |
|---|---|
| VSWR | ≤1.15 |
| Temperature Range | -55~+165℃ |
|---|
