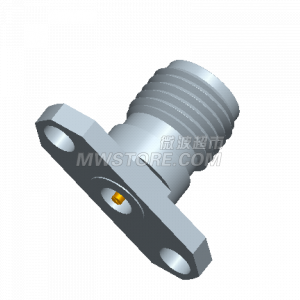

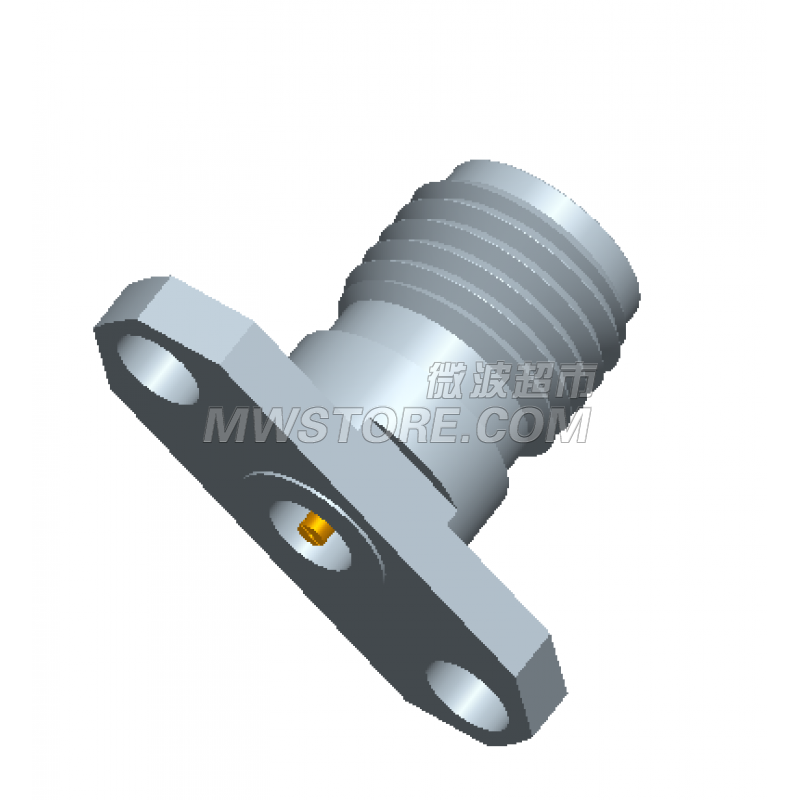

1.85mm FemaleField Replaceable Connector, 2 Hole Flange, Hole Spacing 12.2mm，DC-65GHz， Accepts Ø0.30mm Pin，Product size information as follow：
Application：
Description
| Connector 1 Series |
1.85mm |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Material |
Stainless Steel |
| Interface Type |
For PCB |
| Mount Method |
2 Hole Flange |
| Body Style |
Straight |
Electrical Specifications
| Frequency Range |
DC-65G |
| VSWR |
≤1.25 |
Environmental Specifications
| Temperature Range |
-55~+165℃ |
