| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥--- | ￥--- | ￥--- | ￥--- | ￥--- |

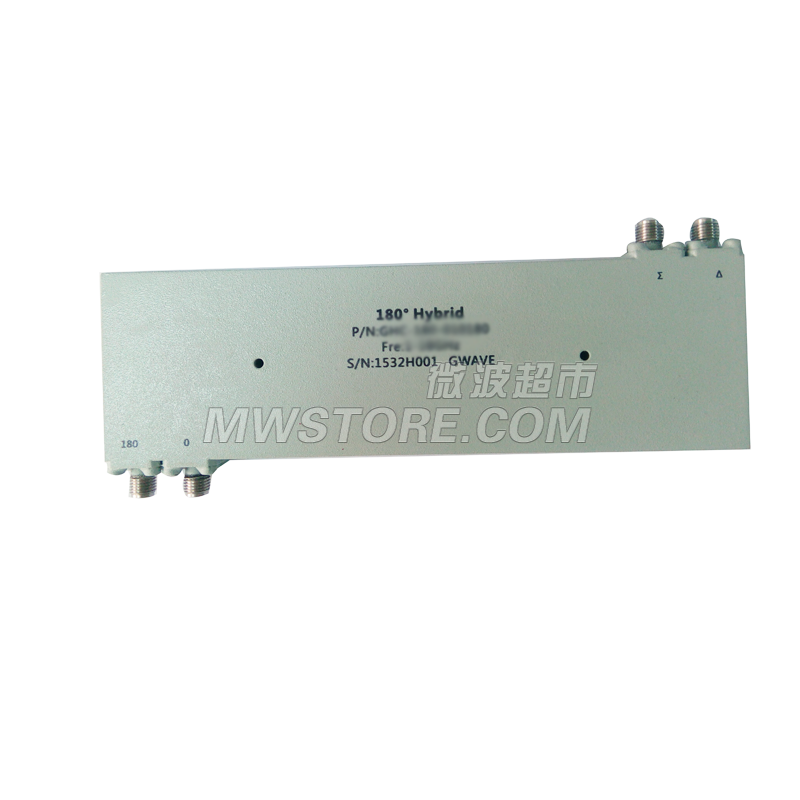

SMA 180 Deg. Hybrid Coupler,1-18GHz,20W
| Peak Power Max. | 3kW |
|---|---|
| CW Power Max. | 20W |
| Impedance, Ohms | 50Ω |
| Conn.Type | SMA(F) |
| Phase Bal. Max. | ±12° |
|---|---|
| Amp.Bal. Max. | ±1dB |
| Isolation Min. | 15dB |
| Frequency Range | 1 ~ 18G |
| VSWR | 1.7 |
| Insertion Loss | 2.9dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 149.9x44.5x12.7mm |
|---|
