| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥--- | ￥--- | ￥--- | ￥--- | ￥--- |

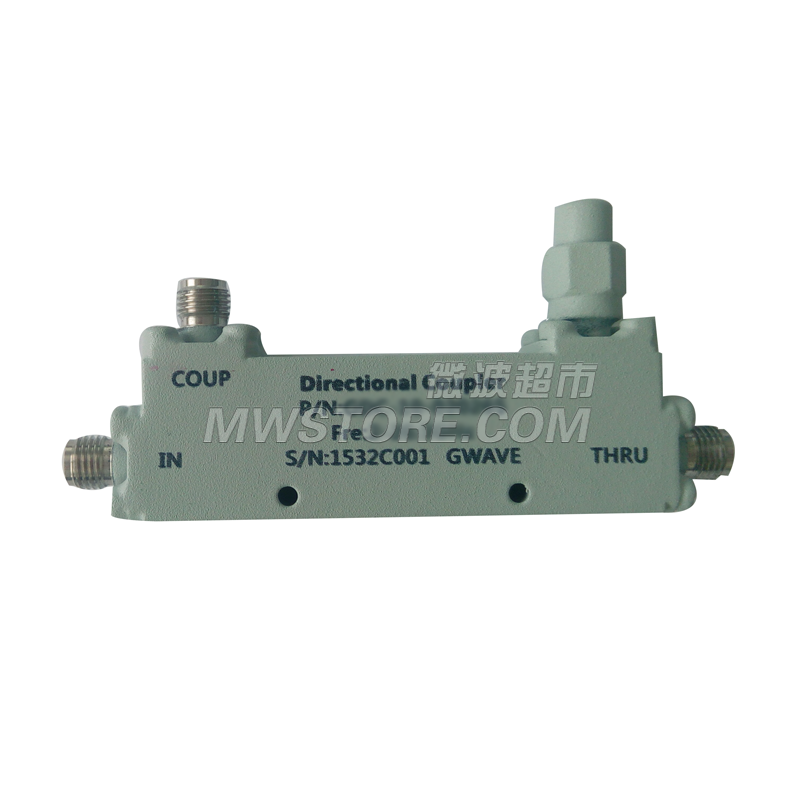

SMA 10dB Directional Coupler,2-18GHz,20W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 3kW |
| Frequency Range | 2 ~ 18G |
|---|---|
| Nominal Coupling | 10±0.5dB |
| Main VSWR Max. | 1.4 |
| Coupling VSWR Max. | 1.4 |
| Directivity Min. | 15dB |
| Frequency Flatness Max. | ±0.5dB |
| Insertion Loss | 1.3dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 57.2x12.7x17.8mm |
|---|
