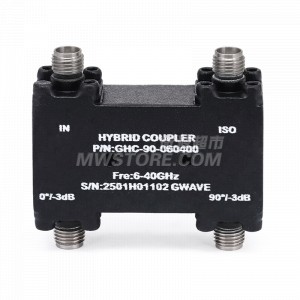

2.92mm 90 Deg. Hybrid Coupler,6-40GHz,20W
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 3kW |
| Frequency Range | 6 ~ 40G |
|---|---|
| Isolation Min. | 14dB |
| Amp.Bal. Max. | ±1.2dB |
| Phase Bal. Max. | ±10° |
| VSWR | 1.8 |
| Insertion Loss | 2dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 43.7x21.9x12.7mm |
|---|
