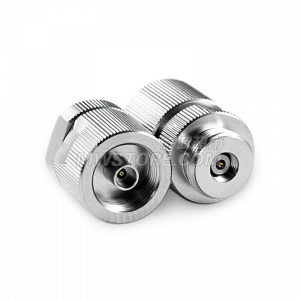

NMD2.4MM(FEMALE)-NMD2.4MM(MALE) Test Port Precision Adapter，DC to 50GHz
Description
| Connector 1 Series |
NMD2.4mm |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Material |
Stainless Steel |
| Connector 2 Series |
NMD2.4mm |
| Connector 2 Gender |
Male |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Material |
Stainless Steel |
| Mount Method |
None |
| Body Style |
Straight |
Electrical Specifications
| Frequency Range |
DC-50G |
| VSWR |
≤1.25 |
| Insertion Loss |
0.4dB |
Environmental Specifications
| Temperature Range |
-55~+125℃ |
