All Categories >RF Connector >SMA >PCB End Launch Connector >SMA Female PCB Thru-Hole Connector, 5.08mm Hole Spacing,Φ1.27mm Pin,DC-18GHz

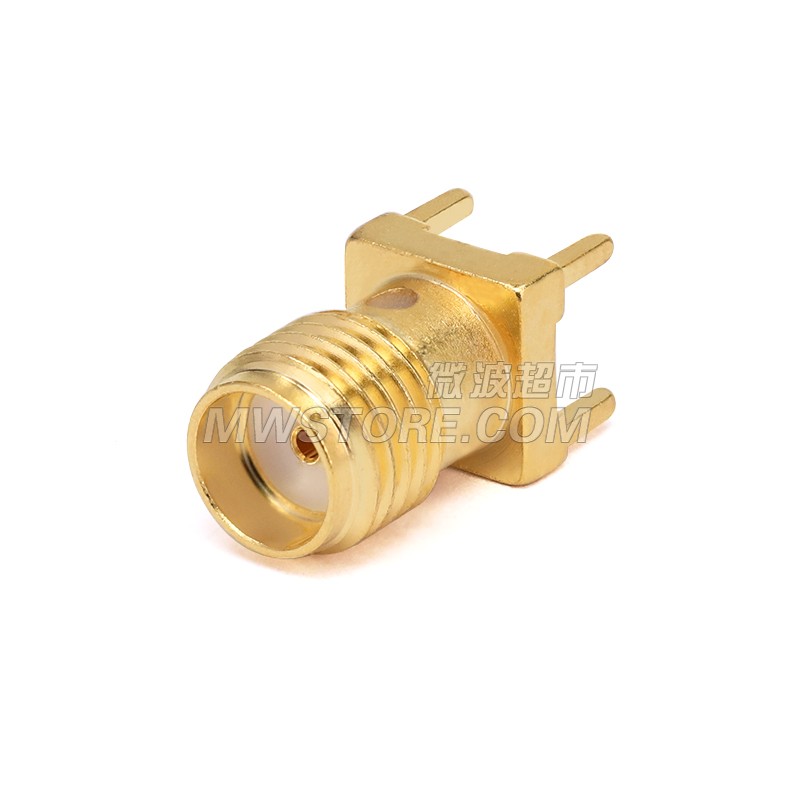

SMA Female PCB Thru-Hole Connector, 5.08mm Hole Spacing,Φ1.27mm Pin,DC-18GHz

Model:SMA-KHD100 100733ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-10 11 -50 51 -200 201 -500 501+
Price ¥20.00 ¥19.60 ¥19.00 ¥18.40 ¥18.00
Price: ¥20.00 /pcs
Qty
- +
Leadtime: 4-7 days
Add to Cart Inquiry Now

SMA Female PCB Thru-Hole Connector, 5.08mm Hole Spacing,Φ1.27mm Pin,DC-18GHz


Description
Connector 1 Series SMA
Connector 1 Gender Female
Connector 1 Impedance 50 Ohms
Connector 1 Polarity Standard
Connector 1 Body Material Brass Gold Plated
Interface Type For PCB
Mount Method None
Body Style Straight
Electrical Specifications
Frequency Range DC-18G
Environmental Specifications
Temperature Range -40~+165℃
