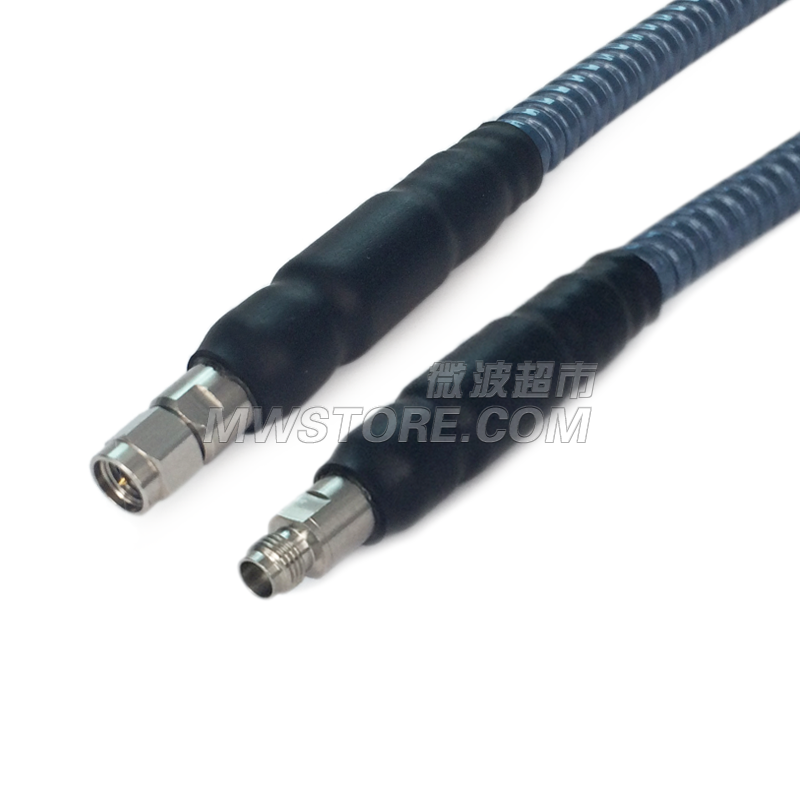

2.92mm Male to 2.4mm Female Cable Using GT142A Coax With Stainless Steel Interlocked Hose With Polyurethane Jacket, DC-40GHz
Description
| Connector 1 Series |
2.92mm |
| Connector 1 Gender |
Male |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Stainless Steel |
| Connector 1 Mount Method |
None |
| Connector 2 Series |
2.4mm |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Stainless Steel |
| Connector 2 Mount Method |
None |
| For Cable |
GT142A |
| Arm Serious |
Stainless Steel Interlocked Hose With Polyurethane Jacket(A4) |
Electrical Specifications
| Frequency Range |
DC-40G |
| VSWR |
≤1.44 |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+80℃ |
