| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥--- | ￥--- | ￥--- | ￥--- | ￥--- |

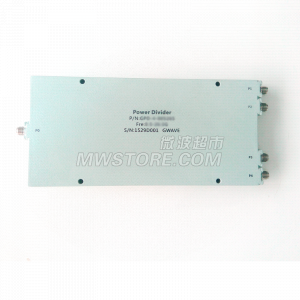

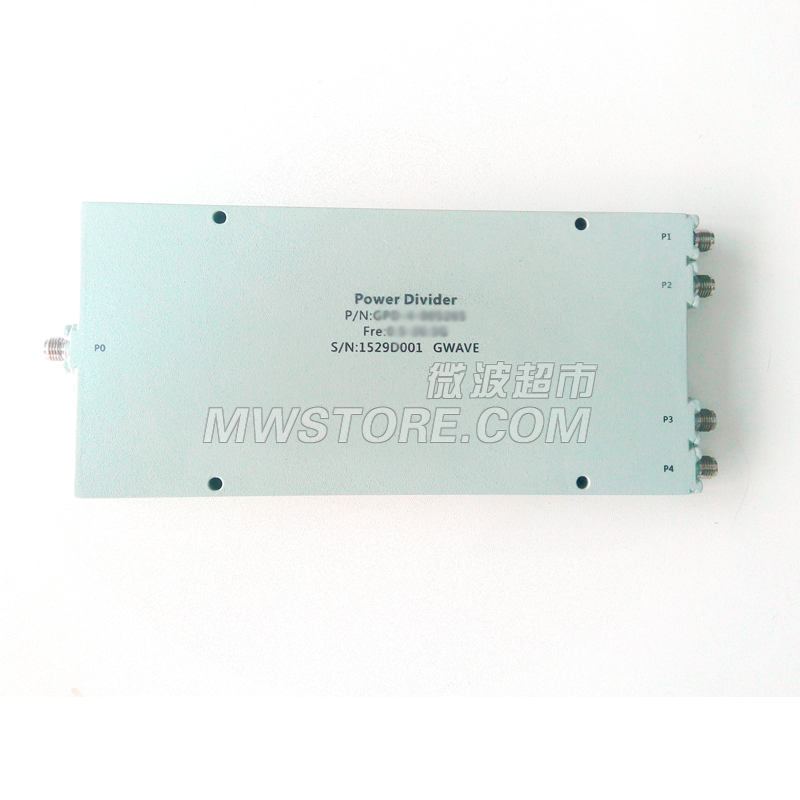

4 Way SMA Power Divider,2-18GHz,20W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 3kW |
| Input VSWR Max. | 1.5 |
|---|---|
| Phase Bal. Max. | ±5° |
| Amp.Bal. Max. | ±0.3dB |
| Isolation Min. | 16dB |
| Frequency Range | 2 ~ 18G |
| Output VSWR Max. | 1.5 |
| Insertion Loss | 2.4dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 79.2x51.6x12.7mm |
|---|
