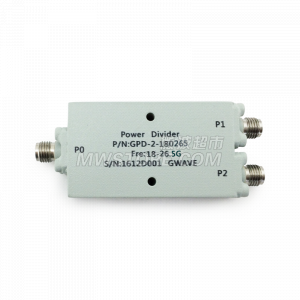

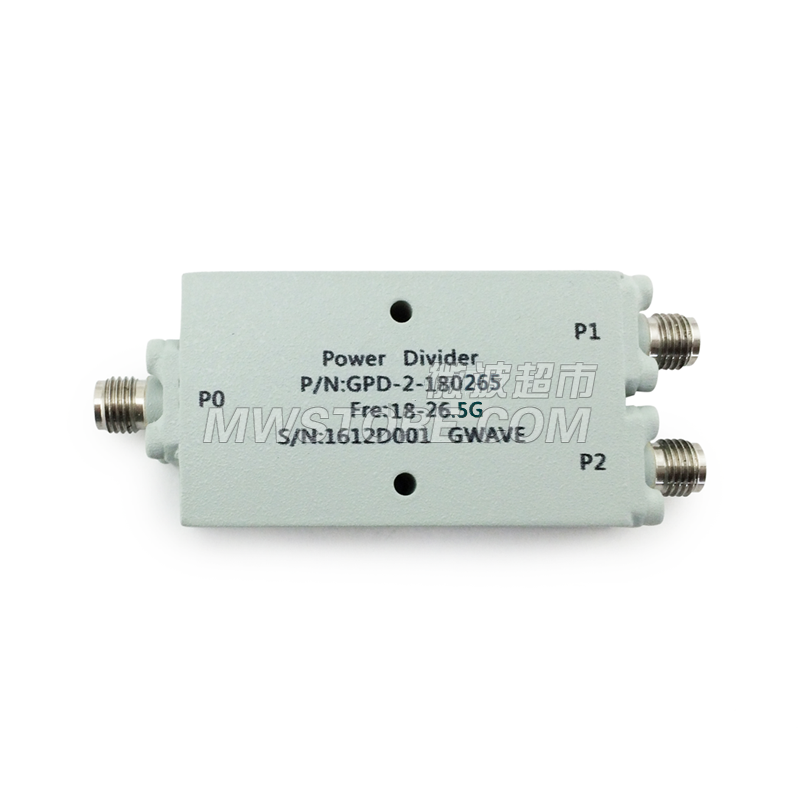

2 Way SMA Power Divider,18-26.5GHz,20W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 3kW |
| Frequency Range | 18 ~ 26.5G |
|---|---|
| Input VSWR Max. | 1.5 |
| Output VSWR Max. | 1.5 |
| Isolation Min. | 18dB |
| Amp.Bal. Max. | ±0.3dB |
| Phase Bal. Max. | ±3° |
| Insertion Loss | 1.2dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 21.6x26.9x12.7mm |
|---|
