| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥6,500.00 | ￥6,370.00 | ￥6,175.00 | ￥5,980.00 | ￥5,850.00 |

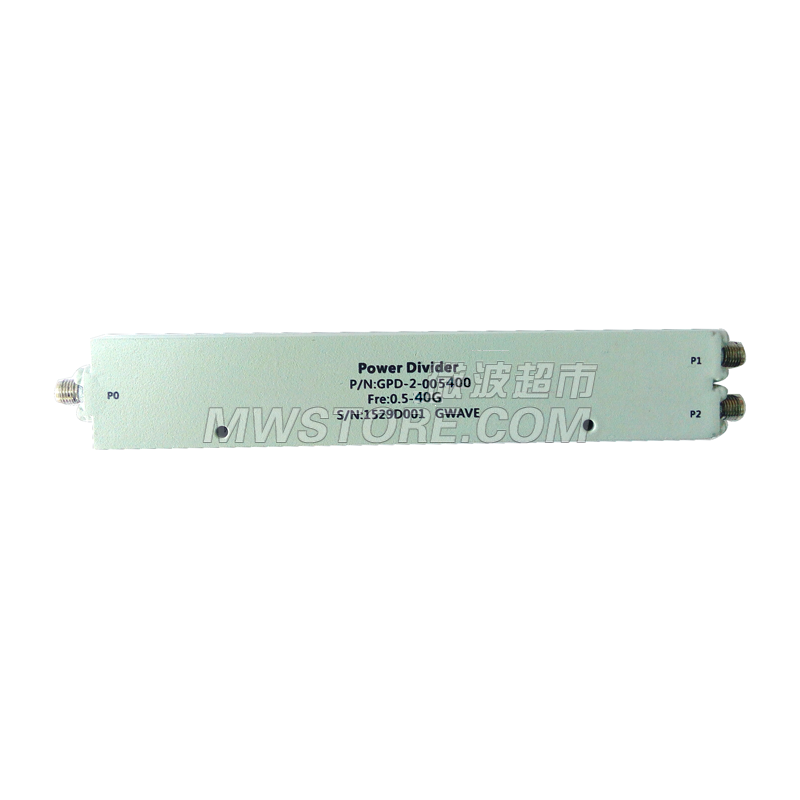

2 Way 2.92mm Power Divider,0.5-40GHz,20W
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 3kW |
| Frequency Range | 0.5 ~ 40G |
|---|---|
| Input VSWR Max. | 1.6 |
| Output VSWR Max. | 1.6 |
| Isolation Min. | 16 dB |
| Amp.Bal. Max. | ±0.5 dB |
| Phase Bal. Max. | ±6° |
| Insertion Loss | 3.5 dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 149.2x26.4x12.7mm |
|---|
