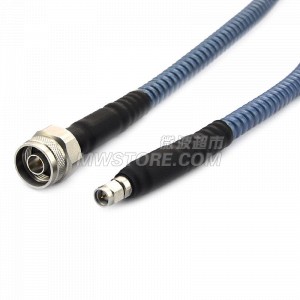

N Male to SMA Male Cable Using GT210A Series Coax With Stainless Steel Interlocked Hose With Polyurethane Jacket，DC-18GHz
Description
| Connector 1 Series |
N |
| Connector 1 Gender |
Male |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Stainless Steel |
| Connector 1 Mount Method |
None |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Male |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Stainless Steel |
| Connector 2 Mount Method |
None |
| For Cable |
GT210A |
| Arm Serious |
Stainless Steel Interlocked Hose With Polyurethane Jacket(A4) |
| Mount Method |
None |
Electrical Specifications
| Frequency Range |
DC-18G |
| VSWR |
≤1.25 |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+80℃ |
