Description

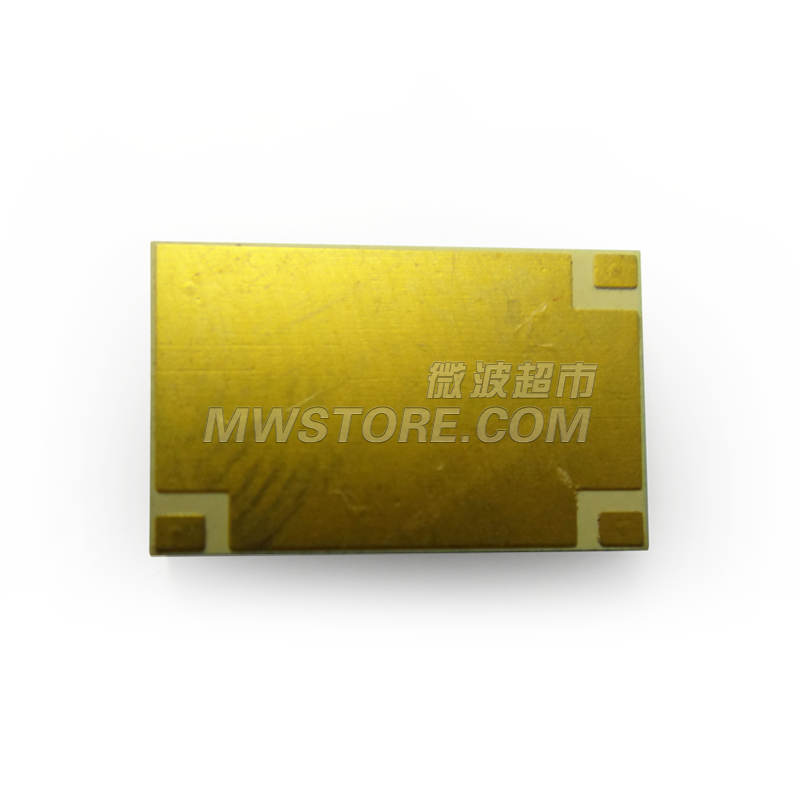

MLT2432B is 2.4 GHz to 3.2 GHz wideband output limiting amplifier with very flat output power. The input is matched to 50 Ω with DC blocking capacitors. No external matching components or DC bypassing capacitor are needed. MLT2432B has low current consumption over -20dBm to -10dBm input power range. The compact size and thin thickness design aresuitable forportable device applications.

Features

l  260mil x420 mil surfacemount package

l  Excellent flatness in S21

l  Fullymatched in S11S22

l  10dBm output power for -20dBm to -10dBm inputpower range

l  Unconditionally stableacross loadcondition

l  Single 5Vsupply

Applications

l  Mobile Infrastructures

l  WiMAX

l  Defense

l  Security System

l  Measurement

l  FixedWireless

Specifications at 2.8GHz 5V50mAwith -20dBm input power(typical)

l  10.7dBm output power

l  -17dB inputreturn loss

l  -18dB output return loss

l  50.1mAcurrent consumption at 55°C

l  50.5mAcurrent consumption at -40°C
